Introduction to Programming and Scientific Applications (Spring 2018)

Project I - Geometric medians

Motivation: Assume you want to build a drone tower from where to deliver parcels to costumers, and you know the destinations (points) where to deliver parcels. What is the optimal placement of the tower, if each drone can at most carry one parcel and needs to return to the tower between each delivery?

The geometric median of a point set S = { p₁, ..., p_n } in the plane is a point q (not necessarily a point in S), that minimizes the sum of distances to the points, i.e. minimizes ∑_i=1..n |p_i - q|, where |p - q| = ((p_x - q_x)² + (p_y - q_y)²)^0.5.

1. Create a function geometric_median that given a list of points computes the geometric median of the point set.
   Hint. Use the minimize function from the module scipy.optimize.

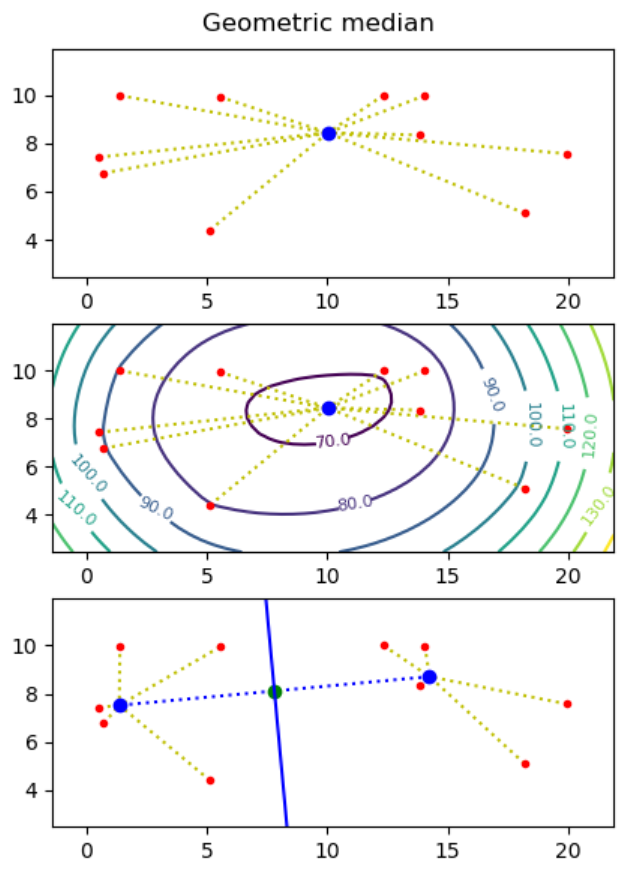

2. Make representative visualizations that show both the input point sets and the computed geometric medians. Examples should include point sets with two and three points, and a random point set.
3. Use the matplotlib plotting function contour to plot a contour map to illustrate that it is the correct minimum that mas been found (the z-value for a point (x, y) in the contour map is the sum of the distances from (x, y) to all input points).

Next we want to find two points q₁ and q₂ such that the perpendicular bisector of q₁ and q₂ partitions the point set into the points closest to q₁ and those closest to q₂. We want to find two points q₁ and q₂ such that the sum of distances to the nearest point of q₁ and q₂ is minimized, i.e. ∑_i=1..n min(|p_i - q₁|, |p_i - q₂|) is minimized.

To solve this problem one essentially has to consider all possible bisection lines, and to find the geometric median on both sides of the bisector, e.g. using the algorithm from question a). Assuming no three points are on a line, it is sufficient to consider all n(n+1)/2 bisector lines that go through two input points, and for each bisector line to consider the two cases where the two points on the line both are considered to be to the left or to the right of the line.

4. Create a function two_geometric_medians that give a list of points p₁, ..., p_n computes two points q₁ and q₂ minimizing ∑_i=1..n min(|p_i - q₁|, |p_i - q₂|). It can be assumed that no three points are on a line.
5. Visualize your solution, showing imput points, q₁ and q₂, and the perpendicular bisector between q₁ and q₂.
6. [optional] Extend your solution to handle the case where three or more points can be on a line. E.g. what is your solution if you have four points on a line?
7. [optional] Try to use some real geometric data, e.g. addresses stored in a file and using the geocoder module to convert addresses to longitude & latitude coordinates (be aware that there are usage limitations).

   > import geocoder
   > geocoder.google('aarhus universitet nordre ringgade 1').latlng
   [56.1681384, 10.2030118]


   Use the pyproj library to convert longitude & latitude to a points in a plane. For Denmark a good approximation is to use the UTM32 projection.

Project II - Portfolio optimization

We consider the problem of choosing a long term stock portfolio, given a set of stocks and their price over some period under risk aversion parameter γ > 0.

Assume there are m stocks to be considered. The portfolio will be represented by a vector w ∈ ℝ^m, such that ∑_i=1..m w_i = 1. If w_i > 0, you use a fraction w_i of your total money to buy the i'th stock, while w_i < 0 represent shorting that stock. In both cases we assume the stock is bought/shorted for the entire period.

Let p_j,i represent the price of the i'th stock at time step j. If there are n time steps, then p ∈ ℝ^n×m is a matrix.

Let r_j,i represent the fractional reward of stock i at time step j, i.e. r_j,i = (p_j,i - p_j-1,i) / p_j-1,i for j > 1.

We make the (unrealistic) assumption that we can model r by a random variable, distributed as a multivariate Gaussian with estimated means,

μ = E[r] ≃ 1/n · ∑_j=1..n r_j

and estimated variances,

Σ = E[(r - μ)(r - μ)^T] ≃ 1/n · ∑_j=1..n [(r_j - μ)(r_j - μ)^T]

The distribution of returns using some w is then

R_w = N(μ_w, σ_w²)
μ_w = w^Tμ
σ_w² = w^TΣw

Now, we want to maximize for a balance between high return μ_w and low risk σ_w². This leads to the following optimization problem, where we ant to find the value w* of w maximizing the following expresion:

maximize     w^Tμ - γw^TΣw

subject to     ∑_i=1..m w_i = 1

where γ controls the balance between risk and return. A high value of γ indicate we are willing to take low risk and vise versa.

In this project you should find w* for different values of γ and using real stock values of your choice. The project consists of the following three questions.

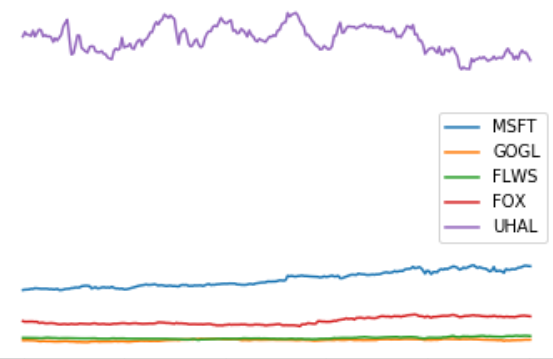

1. We need a module for collecting stock values, for this we will use the module googlefinance. Using this you should write a function get_prices([stock₁, ..., stock_k], step_size, period, exchange), that returns a tuple (stocks, p), where p[j, i] represents the opening price of stock i at time step j and stocks[i] is the name of the i'th stock. Make a plot of p, where each stock is labeled with its name, e.g. MSFT or GOGL. You should use at least five stocks.
2. Calculate r, μ and Σ using the formulas above and the p calculated in question (a). Plot the probability density function (pdf) of the return of each stock.
   Hint. The method normpdf from the module matplotlib.mlab might become convenient.
3. Solve the optimization problem defined above for different values of gamma, e.g. gammas = (np.arange(10) / 5) + 1, and plot the pdf of each solution to a single plot with appropriate legends. Finally create a scatter plot of how w* changes as γ changes: For each value of γ plot the fraction of each stock in the portfolio.

Project III - Open topic

You can also define your own project. There are some aspects that needs to be addressed.

• Some minimal amount of Python 3 code must be produced.
• Use at least two different Python modules.
• Some data must be visualized, e.g using matplotlib, but any visualization module or domain specific library, like for chemistry, can be used.

You need to get your project description approved by sending an e-mail to gerth@cs.au.dk.
