Computational Geometry (Fall 2008)

Project 3

(A) Lower envelope of half rays

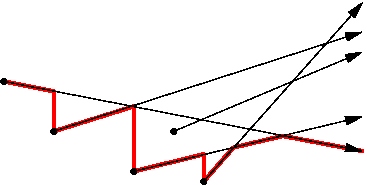

Consider n rightward rays in the plane. Describe an algorithm with running time 0(nlog n) for finding the lower envelope of the n rightward rays (shown in red in the example below). Your answer should include an argument about that the number of points/segments on the lower envelope is 0(n).

(B) Minimal points in R3

Consider n points p1,p2,...,pn in R3. A point pi = (xi,yi,zi) is minimal if no other point pj = (xj,yj,zj) satisfies simultaniously xjxi, yjyi, and zjzi. Describe an algorithm that finds all minimal points in time 0(nlogc n), where c is a small constant. In the example below the green points show the minimal points for a point set in R2.

(C) Smallest enclosing rectangle

Describe an algorithm that given n points in the plane finds a rectangle of minimal area that contains all points. The rectangle is allowed to have sides that are not axis parallel (but the four corners should of course each be 90°). The running time of the algorithm should be 0(nlog n).

You may use the following fact without proof: In the smallest rectangle, one of the sides must touch two of the input points.

(D) Most Densely Polulated Unit Circle

Describe an algorithm that given n points in the plane finds a circle of radius one containing the most numer of points. The algorithm should ideally have a running time of 0(n2).

Deadline: Monday January 12, 2009.

Important note: The project should be done in groups of up to three persons. The evaluation of the report will be part of the final grade.
